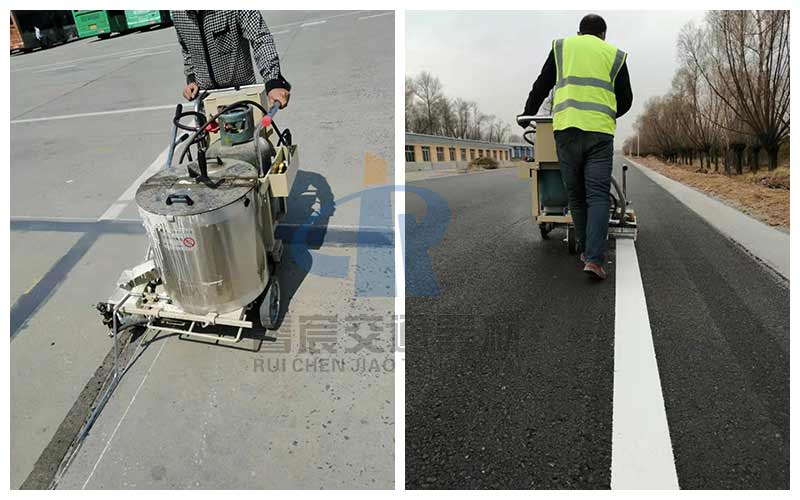

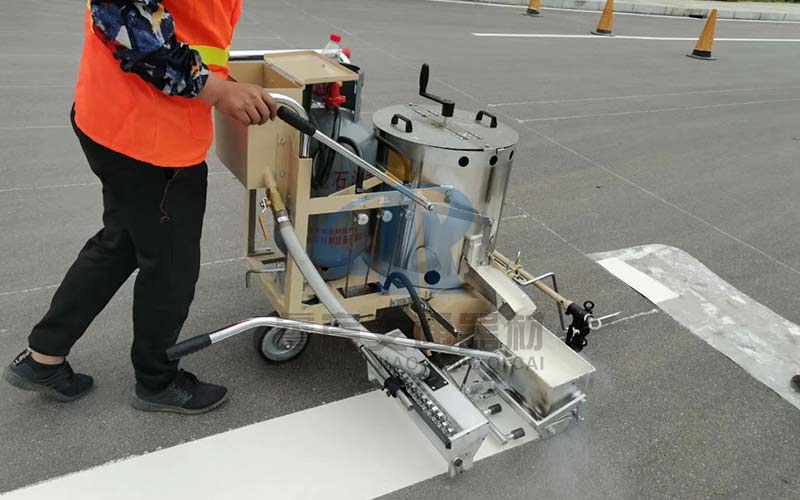

Thermoplastic Road Line Marking Machine RC-TRM-2
Thermoplastic Tank: Double Stainless Steel Heating Insulation Barres Capacity 100kg
Marking width: 100-450mm (At customers’ option)
Glass Bead Container: 10kg/box
Landing Knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking:1-2.5 mm
-
•Labor-saving: Unique design of screeding knife bottom ensure a good sealing and easy open & close.
-
•Wide application: Thermoplastic Road Marking Machine have the advantage of low investment, light weight, suitable for the marking work with thermoplastic paints in all kinds of roads, vehicle parks, schools, factories, etc.
-
•Road line marking machines with adjustable glass beads dispenser: Synchronous clutching and spreading, equipped with speed shifting device. Adjustable width 50-200mm..
-
•Double stainless steel heating insulation barrels, capacity 100kg.
-
•Scree-ding type road marking hopper: Using the hopper, making the lines much neat and more elegant.
-
•Adjustable pointer in order to improve work efficiency.
Thermoplastic Road Marking Machine Parameters:
| Paint Barrels: | double stainless steel heating insulation barrels, capacity 100 kg,
plug-in manually mixer devices, removable devices |
| Glass Bead Storage Box: | 10 kg / box |
| Glass Beads Sow Browser: | synchronous clutch spread with speed gearshift device |
| Marking Width: | High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm, Can provide 100-450mm |
| Landing Knife: | Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1-2.5 mm |
| Tire: | Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction |
| Heating Method: | liquefied petroleum gas |
| Subscript Line Width: | 150 mm engineering requirements in accordance with the replacement of different specifications crossed Doo |
| Size: | 1250 * 900 * 950 mm |
| Net Weight: | 110kg (242.5ib) |
-
