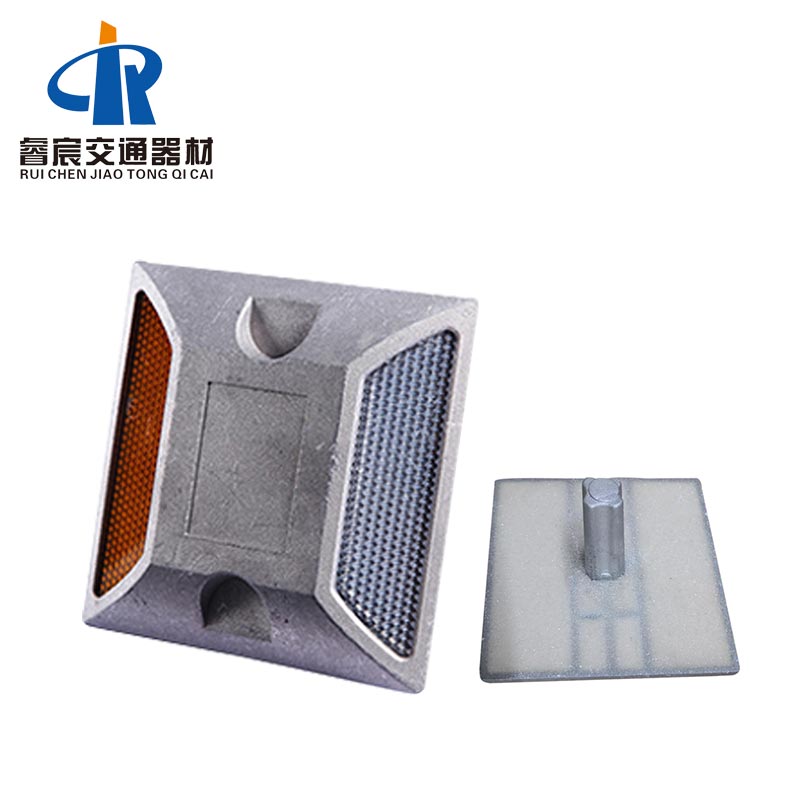

Aluminum Reflective Led Road Stud Marker 102

Body Material: ABS
Size: 102*102*22mm+50mm (4.02″*4.02″*0.87″+1.97″)
Filling: Epoxy+Quartz sand
Lens Material: PMMA

Email: info@rctraffic.com

Send Inquiry

Online Chat

Product Details

Reflective Led Road Stud Marker Features:

•Led Road Studs water, oil, chemical, and heat resistance.

•Aluminium reflective Led Road Studs road marker can work more than 3 years normally.

•Very high reflectivity.

•Reflective Led Road Studs easy installation with glues.

•Photometric values:exceeds 600(mcd/lux).

Aluminum Reflective Led Road Stud Colors

Reflective Led Road Stud Parameters:

Body material:	ABS
Filling:	Epoxy+Quartz Sand
Lens Material:	PMMA
Reflector type:	Double side/Single side
Quality:	ASTM D4280 & EN1463-1 standard
Size:	10210222mm+50mm (4.02″4.02″0.87″+1.97″)
Packing:	383622.5cm, 50pcs/ctn (14.96″14.17″8.86″, 50pcs/ctn)
Weight:	320g/pc; 19kg/ctn (0.71bs/pc; 41.89bs/ctn)

Aluminum Reflective Road Stud Marker — Aluminum Reflective Led Road Stud Marker

Installation Method Of Reflective Led Road Stud Marker:

1. Determine the installation location and distance, clean the road surface, and ensure that the Led Road Studs are installed on a flat road surface.
2. Clean the bottom of the Led Road Studs and apply the epoxy glue evenly to the back of the studs.
3. Press the side with the glue on the road, fix the position, wait for the glue to dry.
4. Check within 2 hours of installation to ensure that all Led Road Studs are not installed incorrectly and are not bent or deformed due to compression.
5. Remove the installation isolation facility within 6-8 hours after the installation of the Led Road Studs.
